Adjustable Pressure Regulator
Leading and Distributor of 15 Bar Aluminium Body Adjustable Pressure Regulator, Brass Adjustable Commercial Regulator, R-2301 Aluminium Body Adjustable Pressure Regulator, R-2301 Ill IV Brass Adjustable Pressure Regulator, R-2304 IV Adjustable Pressure Regulator, R-2316 Adjustable Pressure Regulator, R-2317 Adjustable Pressure Regulator, R-2323 Aluminium Body Adjustable Pressure Regulator, R-2325 Adjustable Pressure Regulator, R-2328 Adjustable Pressure Regulator, R-2338 Aluminium Body Adjustable Pressure Regulator, R-2342 Adjustable Pressure Regulator, R-6412 Adjustable Pressure Regulator, R-6414 Adjustable Pressure Regulator and R-6424 Adjustable Pressure Regulator from Vapi.

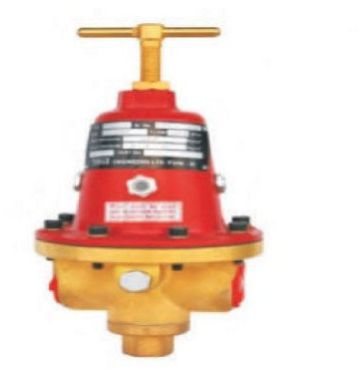

| Business Type | Distributor |
| Application | Gas |
| Pressure | High Pressure |
| Color | Red |
| Material | Aluminium |
| Inlet Pressure Range | 15 - 200 Bar |
| Outlet Pressure Range | 1-10 Bar |
| Gas Flow Rate | 100 Nm3 / hr. |
| End Connection | 1 Inch BSPF |
| Gas | Argon, Hydrogen & Nitrogen |
| Brand | Vanaz |
| Product Code | R-2301 |

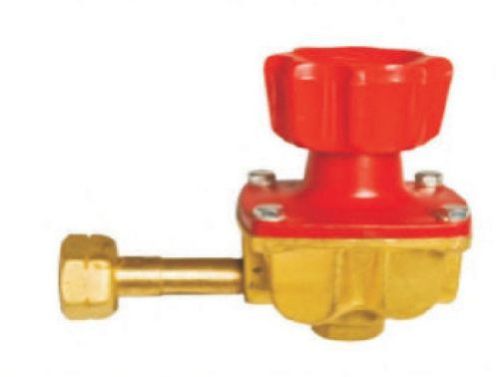

| Business Type | Distributor |
| Inlet Pressure Range: | 0.5-17 Bar |
| Outlet Pressure Range | 0.2-2 Bar |
| Gas Flow Rate | 25 nm3 /hr. |
| End Connection Inlet | 21.8 X 14 TPIL.H Union nut |
| Outlet | 1/4" BSPF |
| Gas | LPG, Natural, Carbon Dioxide, Nitrogen, Argon & Air |
| Available In | Brass R 2202 |
| Also Available in | 1/2 Inch BSPF and union nut on request |
| Brand | Vanaz |
| Product Code | VANAZ R-2202/2202 |

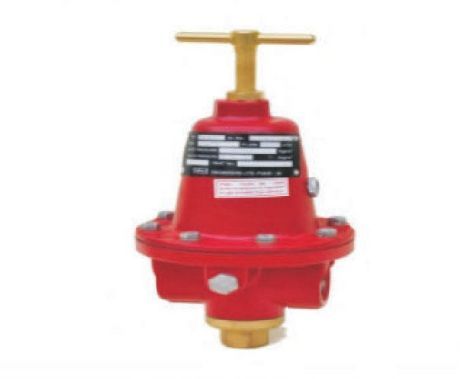

| Business Type | Distributor |
| Color | Red |
| Material | Aluminium |
| Inlet Pressure Range | 1 - 17 Bar |
| Outlet Pressure Range | 0.5-2 Bar , 0.5 - 4 Bar , 0.5 -10 Bar |
| Gas Flow Rate | 100 Nm3 / hr. |
| Brand Name | Vanaz |
| Product Code | R-2301 |
Note : Option of outlet pressure gauge available at extra cost
| Business Type | Distributor |
| Material | Brass |
| Color | Red |
| Pressure | High Pressure |
| Application | Gas |
| Inlet Pressure Range | 15 - 200 Bar |
| Outlet Pressure Range | 1-10 Bar |
| Gas Flow Rate | Gas Flow Rate |
| End Connection | 1 Inch BSPF |
| Brand | Vanaz |
| Product Code | R-2301 Ill /IV |

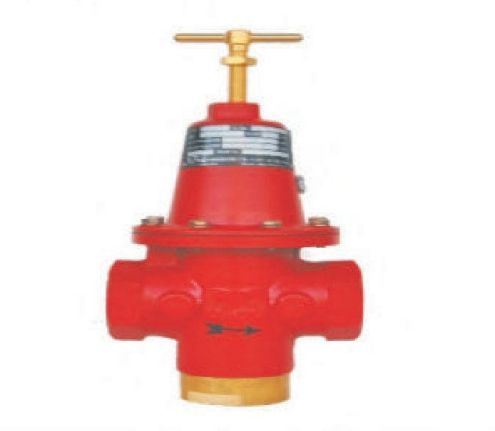

| Business Type | Distributor |
| Material | Carbon Steel |
| Color | Red |
| Pressure | High Pressure |
| Application | Gas |
| Inlet Pressure Maximum | 17 Bar |
| Outlet Pressure Range | 0.5 - 10 Bar |
| Gas Flow Rate | 250 Nm3/hr. |
| End Connection | 1-1/2 Inch BSPF for 2304, 2 Inch BSPF for 2304 IV |
| Gas | LPG, Natural Gas and Nitrogen |
| Brand | Vanaz |
| Product Code | R-2304 / 2304 IV |

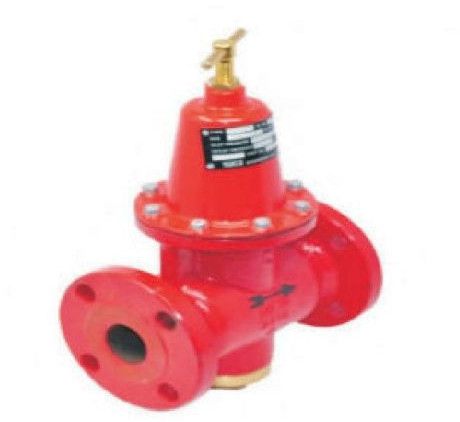

| Business Type | Distributor |
| Material | CS Body Aluminium Bonnet) |
| Color | Red |
| Pressure | High Pressure |
| Application | Gas |
| Inlet Pressure Maximum | 17 Bar |
| Outlet Pressure Range | 0.5 - 10 Bar |
| Gas Flow Rate | 250 Nm3/hr. |
| End Connection for R-2316 | 1 1/2 Inch Flanged end ANSI # 150 for 2316 |
| End Connection for R-2316 II | 1 1/2 Inch Flanged end ANSI # 300 for 2316 II |
| Gas | LPG, Natural Gas and Nitrogen |
| Brand Name | Vanaz |
| Product Code | R-2316/ 2316 Il |

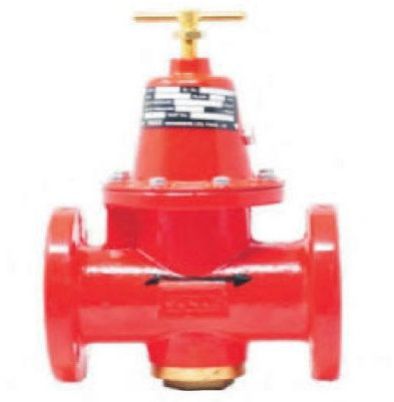

| Business Type | Distributor |
| Material | CS Body Aluminium Bonnet) |
| Color | Red |
| Pressure | High Pressure |
| Application | Gas |
| Inlet Pressure Maximum | 17 Bar |
| Outlet Pressure Range | 0.5 - 10 Bar |
| Gas Flow Rate | 250 Nm3/hr. |
| End Connection for R-2317 | 2" Flanged end ANS| # 150 For 2317 |
| End Connection for R-2317 II | 2" Flanged end ANS! # 300 For 2317 Ill |
| Gas | LPG, Natural Gas and Nitrogen |
| Brand Name | Vanaz |
| Product Code | R-2317/ 2317 Il |

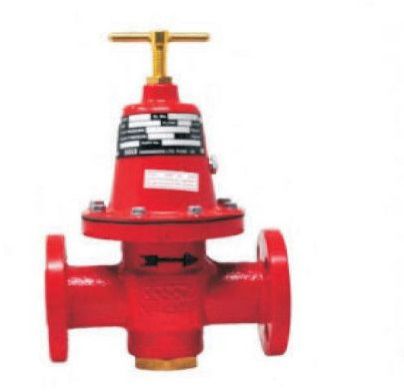

| Business Type | Distributor |
| Application | Gas |
| Pressure | High Pressure |
| Color | Red |
| Material | Aluminium |
| Inlet Pressure Range | 1-17 Bar |
| Outlet Pressure Range | (a) 0.5 - 2 Bar, (b) 0.5 - 4 Bar, (c) 0.5- 10 Bar |
| Gas Flow Rate | 4100 Nm3/hr. |
| End Connection | 1" Flaged ANSI #150 R-2323 |
| Gas | LPG, Natural Gas, Nitrogen |
| Brand Name | Vanaz |
| Product Code | R-2323, 2323 Il |
| Business Type | Distributor |
| Inlet Pressure | 17 Bar |
| Outlet Pressure Range | 0.5 - 8 Bar |
| Gas Flow Rate | 100 Nm3yhr. |
| End Connection | 1° BSPF |
| Gas | Medical Oxygen, Carbon Dioxide and Oxygen |
| Brand Name | Vanaz |
| Product Code | R-2325 |

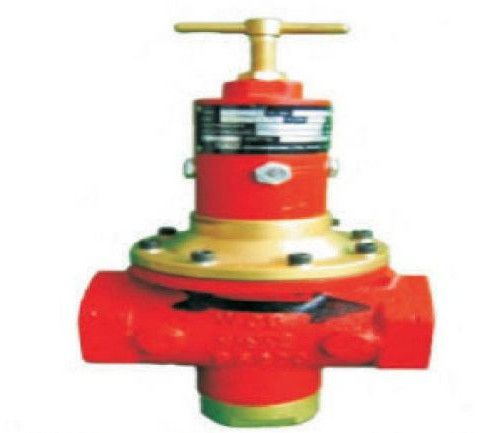

| Business Type | Distributor |
| Color | Red |
| Pressure | High Pressure |
| Application | Gas |
| Inlet Pressure Maximum | 5 - 49 Bar |
| Outlet Pressure Range | 5 - 30 Bar |
| Gas Flow Rate | 1500 Nm3/hr |
| End Connection | 1 1/2 Inch BSPF For R 2328 |
| Bonnet | 2310 Bonnet |
| Gas | Carbon Dioxide, Argon & Nitrogen |
| Brand | Vanaz |
| Product Code | R-2328 |

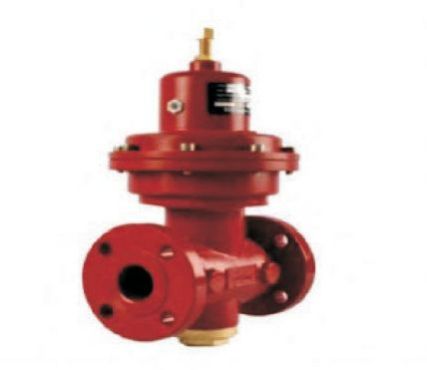

| Business Type | Distributor |
| Color | Red |
| Pressure | High Pressure |
| Application | Gas |
| Inlet Pressure Maximum | 17 Bar |
| Outlet Pressure Range | 0.5 - 4 Bar |
| Gas Flow Rate | 350 Nm3/hr. |
| End Connection | R-2343 11/2" BSPF |
| Gas | LPG |
| Brand | Vanaz |
| Product Code | R-2338 |

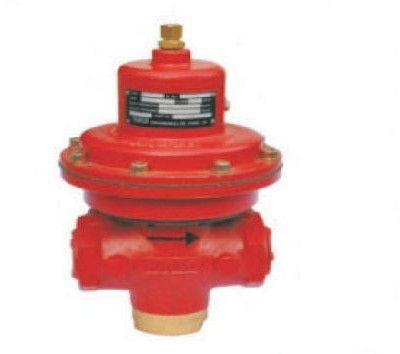

| Business Type | Distributor |
| Color | Red |
| Pressure | High Pressure |
| Application | Gas |
| Inlet Pressure Maximum | 17 Bar |
| Outlet Pressure Range | 0.5-4 Bar |
| Gas Flow Rate | 150 Nm3/hr. |
| End Connection | R-2342 1 Inch BSPF |
| Gas | LPG |
| Brand | Vanaz |
| Product Code | R-2342 / 2337 / 2337 Il |
| Business Type | Distributor |
| Color | Red |
| Pressure | High Pressure |
| Application | Gas |
| Inlet Pressure Maximum | 17 Bar |
| Outlet Pressure Range | 0.5 - 10 Bar |
| Gas Flow Rate | 600 Nm3/hr. |
| End Connection | 3" Flanged end ANSI # 150 |
| Bonnet | 2301 Bonnet |
| Gas | LPG, Natural Gas and Nitrogen |
| Brand | Vanaz |
| Product Code | R-6412 |

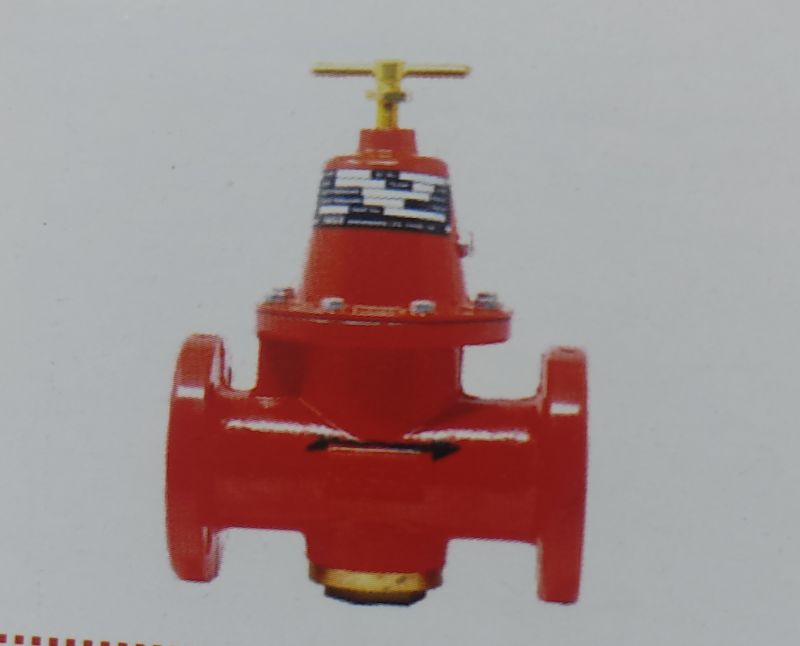

| Business Type | Distributor |
| Color | Red |
| Pressure | High Pressure |
| Application | Gas |
| Inlet Pressure Maximum | 17 Bar |
| Outlet Pressure Range | 0.5 - 10 Bar |
| Gas Flow Rate | 750 Nm3/hr. |
| End Connection | 4" Flanged end ANSI # 150 |
| Bonnet | 2301 Bonnet |
| Gas | LPG, Natural Gas and Nitrogen |
| Brand | Vanaz |
| Product Code | R-6414 |

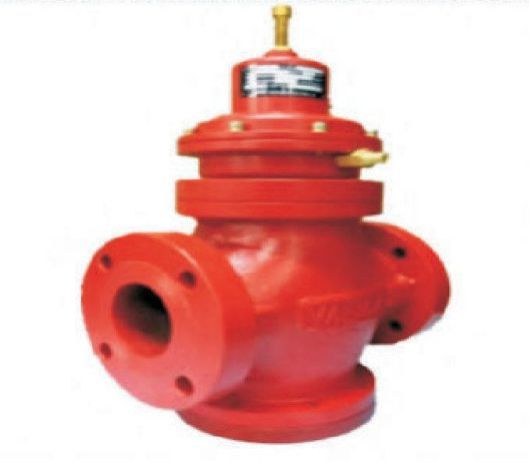

| Business Type | Distributor |
| Color | Red |
| Pressure | High Pressure |
| Application | Gas |
| Inlet Pressure Maximum | 17 Bar |
| Outlet Pressure Range | 0.5 - 4 Bar |
| Gas Flow Rate | 1000 Nm3/hr. for 3” / 1500 Nm3 / hr. for 4 Inch |
| End Connection for R-6424 | 3 Inch Flanged in ANSI # 150 |
| End Connection for R-6424 || | 3" Flanged in ANSI # 300 |
| End Connection for R-6425 | 4” Flanged in ANSI # 150 |
| End Connection for R-6425 Il | 4” Flanged in ANSI # 300 |
| Gas | LPG, Natural Gas and Nitrogen |
| Brand | Vanaz |
| Product Code | R-6424 / 6424 II / 6425 / 6425 || |
